Product Specifications

Performance & Classification

Class 2 e-bike (throttle + pedal assist to 20 mph)

Top Speed: 20 mph

Motor: 500 W nominal

Assist: Thumb throttle + pedal assist (single-speed)

Battery & Electrical System

Battery: 480 Wh (48 V 10 Ah), UL2271 compliant

Range: 25–35 miles (*25+ miles at 20 mph under Class-2 throttle-only operation)

Charge Time: ~5 hours

Integrated LED headlight

Integrated LED tail light

Frame, Ride & Components

Frame: Aluminum

Suspension: Rigid fork

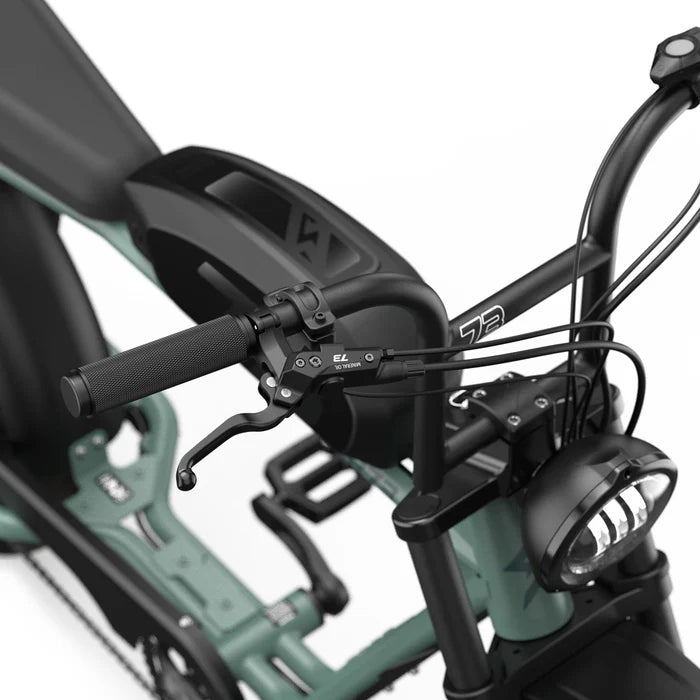

Brakes: SUPER73 2-piston hydraulic disc brakes

Tires: BDGR 4.5″ front / 5″ rear fat tires

Inner Tubes: 20″ × 4.5/5″

Weight: ~67 lbs

Gearing: Single-speed drivetrain

Fit & Geometry

Overall Length:69″
Width: 25″
Height: 42″
Seat Height: 31″
Recommended Rider Height: 5′1″ – 6′8″
Rider Weight Limit: 325 lbs
